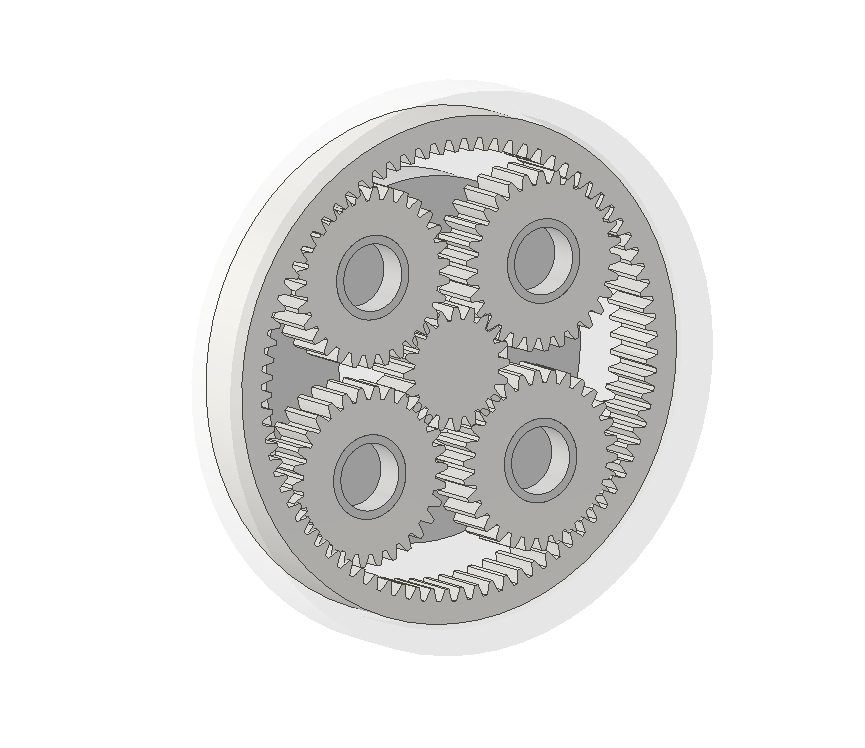

Planetary Gearbox Design
Project type
Automobile Industry
Location
Germany
Project Overview
Designed a single-stage planetary gearbox assembly using Autodesk Inventor to demonstrate mechanical power transmission design, gear system kinematics, and parametric CAD modeling. The project focused on creating a functional gearbox layout capable of delivering high torque within a compact mechanical assembly.
Design Objectives
• Achieve a 5:1 gear reduction ratio
• Maintain compact gearbox geometry
• Ensure correct gear meshing and motion behavior
• Develop a fully constrained mechanical assembly
Key Design Parameters
Input Speed: 3000 RPM
Output Speed: 600
RPMReduction Ratio: 5:1
Gear Module: 2 mm
Pressure Angle: 20°
Gear Configuration
Sun Gear: 20 Teeth
Planet Gear: 30 Teeth
Ring Gear: 80 Teeth
Number of Planet Gears: 4
Engineering Work Completed
• Parametric CAD modeling of gears and gearbox components
• Planet carrier design and assembly layout
• Motion constraints and gear relationships setup
• Assembly verification and interference checks
• Exploded views and section views for visualization
• 2D fabrication drawings
